Recommended usage
- The suitable water pressure for SUMISANSUI® MARK Ⅱ is 0.2-0.8 kg/cm².
- Use filter to reduce tube clogging.
- Discharge sludges from the tube periodically for trouble free irrigation.
- Use Sumisansui® End Stopper to enhance performance.
Specifications
Items
- Tube Width (flattened)
- Standard water feed rate
- Material
- Tube unit length
- Packing
Specifications
- 50mm
- 130-480cc/min m
- Special Polyethylene
- 100m/roll
- 5 rolls/box
Water feed rate
(cc/min m)
Tube length
Water pressure
|
30mm |
50mm |
100mm |
| 0.2 kg/cm² |
200 |
180 |
130 |
| 0.8 kg/cm² |
480 |
440 |
340 |

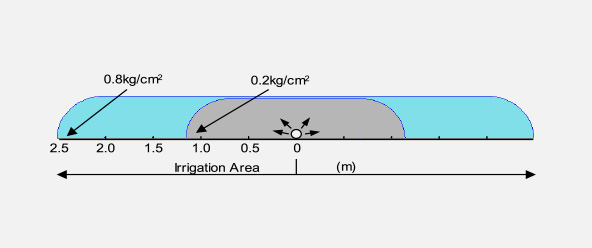

Water presssure and irrigation range
For good coverage maximum tube interval is 3.6m (12ft) apart in oil palm nursery
Layout for oil palm main nursery

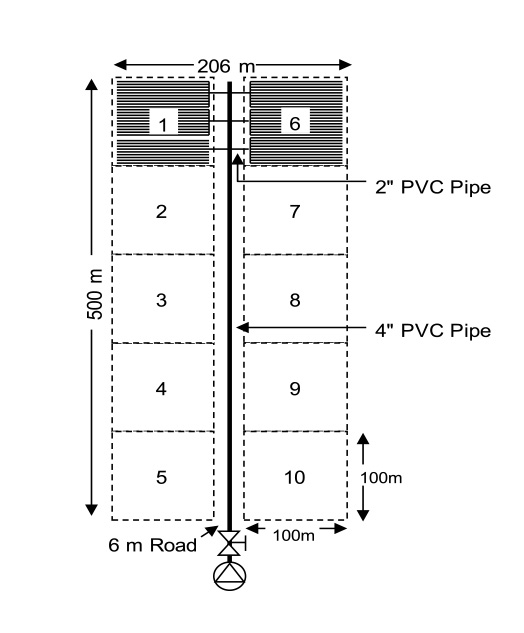

10 HA Layout

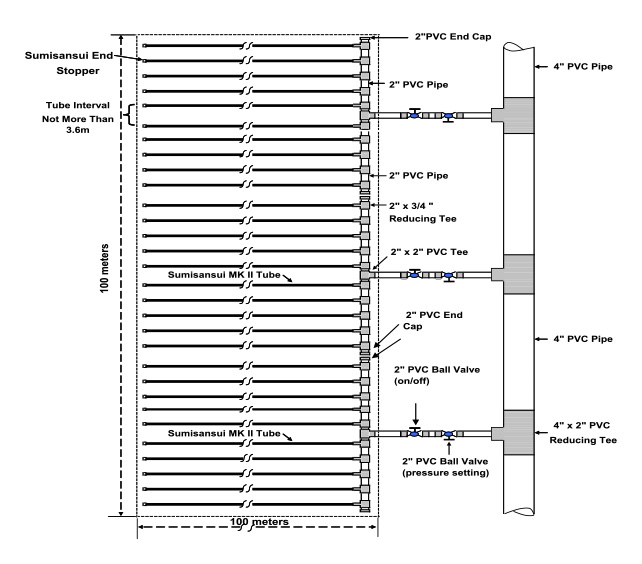

1 HA Layout
